If you’ve been working with employee survey data for a while, you’re probably familiar with Relative Weights Analysis (RWA). But for those of us who started working with this type of data on a regular basis more recently, discovering RWA can be a (very welcome) surprise. 🤓
RWA is a statistical technique used to assess the relative importance of predictor variables in multiple regression models, particularly when multicollinearity is present. When predictors are highly correlated—which is very common in employee survey data—traditional regression coefficients (beta weights) can become unstable and difficult to interpret, making it nearly impossible to gauge the true importance of any single predictor.
RWA tackles this by transforming the correlated predictors into a set of orthogonal (uncorrelated) variables that are maximally related to the originals. From there, it partitions the model’s total explained variance (R2), attributing a specific percentage to each predictor. A key advantage is that these percentages—the relative weights—conveniently sum to 100% of the explained variance, providing a complete and intuitive breakdown of what drives the outcome. Crucially, each predictor’s resulting weight represents its total share of the credit—both its unique power and its portion of the shared, overlapping power—for explaining the outcome.
As you can imagine, this makes RWA especially useful for key drivers analysis of employee survey data when we want to determine the relative importance of (typically highly intercorrelated) survey items or indices for prediction of overall scores or external outcomes.
One just needs to remember that these weights still reflect only association, not causation. Moreover, determining the statistical significance of individual relative weights isn’t straightforward, as their sampling distribution isn’t well-defined. However, with bootstrapping, estimating the corresponding confidence intervals becomes quite easy.
Any helpful tips from folks who’ve used RWA more extensively? If so, feel free to share them in the comments.
P.S. If interested, you can find an example of this method in action using the rwa R package below.
We will use a sample dataset that accompanies the book Predictive HR Analytics: Mastering the HR Metric by Edwards & Edwards (2019). It contains the survey responses of 832 employees on a 1 ‘strongly disagree’ to 5 ‘strongly agree’ response scale for a following set of statements.
Show code
# uploading libraries
library(readxl)
library(DT)
library(tidyverse)
# uploading legend to the data
legend <- readxl::read_excel("./surveyResults.xls", sheet = "Legend")
# user-friendly table with individual survey items
DT::datatable(
legend %>% dplyr::mutate(Scale = as.factor(Scale)),
class = 'cell-border stripe',
filter = 'top',
extensions = 'Buttons',
fillContainer = FALSE,
rownames= FALSE,
options = list(
pageLength = 5,
autoWidth = TRUE,
dom = 'Bfrtip',
buttons = c('copy'),
scrollX = TRUE,
selection="multiple"
)
)And here is a table with the survey responses we will analyse.
Show code
# uploading data
data <- readxl::read_excel("./surveyResults.xls", sheet = "Data")
# selecting relevant vars
mydata <- data %>%
dplyr::select(ManMot1:pos3)
# user-friendly table with the data used in the analysis
DT::datatable(
mydata,
class = 'cell-border stripe',
filter = 'top',
extensions = 'Buttons',
fillContainer = FALSE,
rownames= FALSE,
options = list(
pageLength = 5,
autoWidth = TRUE,
dom = 'Bfrtip',
buttons = c('copy'),
scrollX = TRUE,
selection="multiple"
)
)For the analysis, we’ll need to make some adjustments to the data and compute scale scores based on the relevant items.
Show code
# preparing the data for analysis
mydata <- mydata %>%
# adding employee ID
dplyr::mutate(employee_id = row_number()) %>%
# changing data format from wide to long
tidyr::pivot_longer(ManMot1:pos3, names_to = 'item', values_to = 'rating') %>%
# adding information about the scales individual items belong to
dplyr::left_join(legend %>% select(Scale, Item), by = c('item'='Item'), keep = FALSE) %>%
dplyr::rename('scale' = 'Scale') %>%
# computing scores for individual scales from relevant items
dplyr::group_by(employee_id, scale) %>%
dplyr::summarise(score = mean(rating, na.rm = TRUE), .groups = 'drop') %>%
# changing data format back to wide
tidyr::pivot_wider(names_from = 'scale', values_from = 'score')
# user-friendly table with the data used in the analysis
DT::datatable(
mydata,
class = 'cell-border stripe',
filter = 'top',
extensions = 'Buttons',
fillContainer = FALSE,
rownames= FALSE,
options = list(
pageLength = 5,
autoWidth = TRUE,
dom = 'Bfrtip',
buttons = c('copy'),
scrollX = TRUE,
selection="multiple"
)

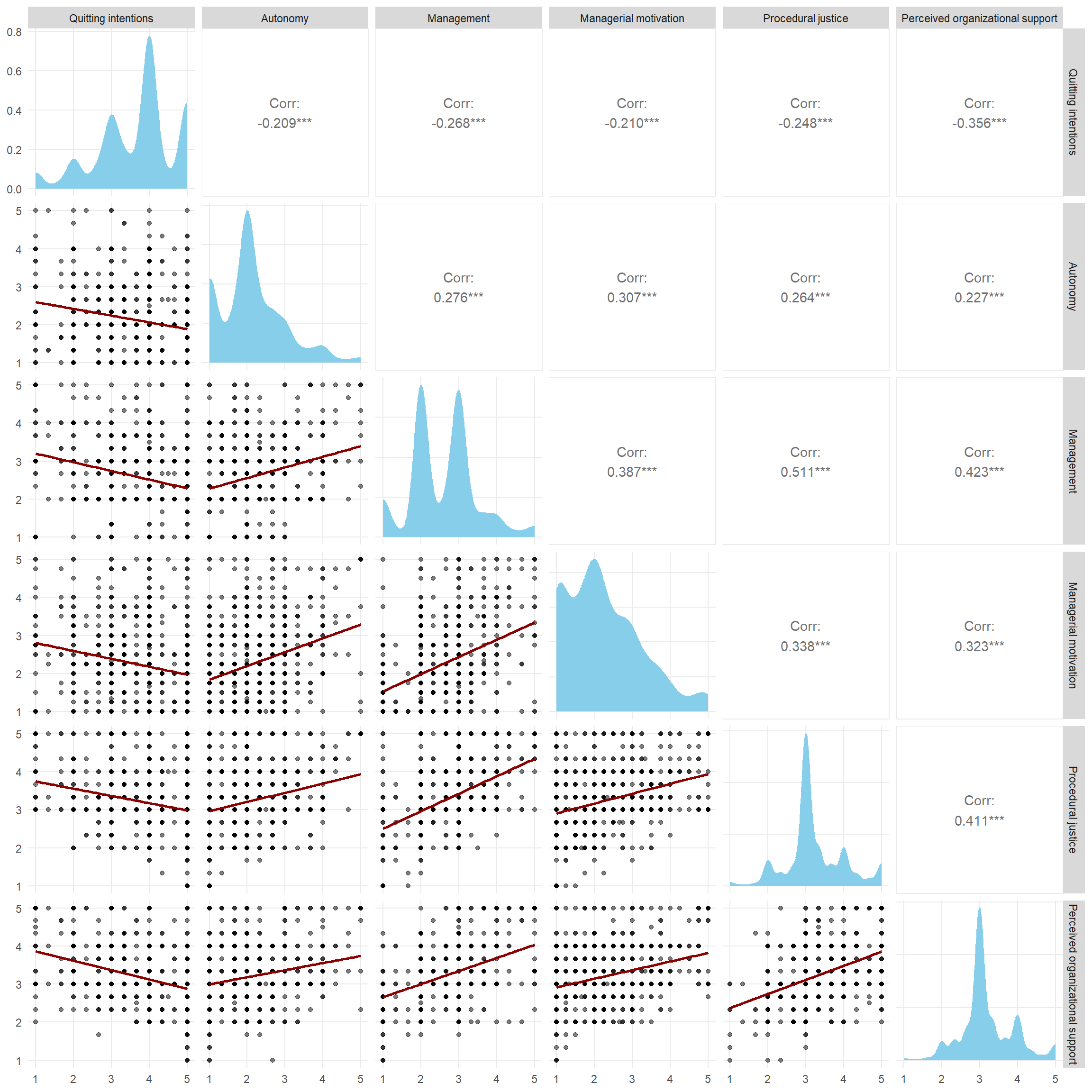

)In our example, we’ll focus on selected relevant predictors of quitting intentions. First, we’ll use a pair plot to explore the relationships among the individual scales. Our main interest lies in the correlations between these predictors and quitting intentions, but we’ll also examine the intercorrelations among the predictors themselves, as these can indicate how much RWA might help us address potential multicollinearity.
Show code
library(GGally)
# setting outcome variable and predictors
outcome <- 'Quitting intentions'
predictors <- c('Autonomy', 'Management', 'Managerial motivation', 'Procedural justice', 'Perceived organizational support')
# checking correlations between survey scales
# custom functions for diag and lower panels
lower_fn <- function(data, mapping, ...) {
ggplot(data = data, mapping = mapping) +
ggplot2::geom_point(alpha = 0.5) +
ggplot2::geom_smooth(method = "lm", se = FALSE, color='darkred', ...) +
ggplot2::theme_minimal() +
ggplot2::theme(
panel.grid.minor.y = element_blank(),
panel.grid.minor.x = element_blank()
)
}
diag_fn <- function(data, mapping, ...) {
ggplot2::ggplot(data = data, mapping = mapping) +
ggplot2::geom_density(fill = "skyblue", color = "skyblue", ...) +
ggplot2::theme_minimal() +
ggplot2::theme(
panel.grid.minor.y = element_blank(),
panel.grid.minor.x = element_blank()
)
}
# ggpairs call
GGally::ggpairs(
mydata %>% select(outcome, predictors),
lower = list(continuous = lower_fn),
diag = list(continuous = diag_fn)
)
In the top row of the pair plot, we can see that Quitting Intentions are moderately negatively correlated with the other scales—most strongly with Perceived Organizational Support (around r=-0.35), followed by Management and Procedural Justice (around r=-0.25), and finally with Management Motivation and Autonomy (around r=-0.20). Correlations between the predictor variables themselves are slightly higher but still fall within the moderate range. The highest correlation is around r=0.5 between Procedural Justice and Management. This suggests that multicollinearity should not be an issue, but still, the intercorrelations are big enough to have an impact on our efforts to estimate relative importance of individual predictors. Let’s see how it plays out.
After running the RWA, we can see from the table below that the overall regression model explains about 16% of the variability in quitting intentions, and nearly 50% of this predictive power is attributable to Perceived Organizational Support, while the remaining predictors each contribute between 10% and 15%.
Show code
[1] "R-squared: 0.159"Show code
Predictor Rescaled.Weight
1 Perceived organizational support 48.595411
2 Management 16.514796
3 Procedural justice 13.332622
4 Autonomy 12.532476
5 Managerial motivation 9.024694These numbers differ quite a bit from what we’d get by simply converting the correlation coefficients above into percentages—in that case, the predictors would appear more similar in their impact.
Show code
# running Persoan correlation analysis
cor(
mydata %>% select(outcome, predictors),
use = "pairwise.complete.obs",
method = "pearson"
) %>%
as.data.frame() %>%
tibble::rownames_to_column(var = "Predictor") %>%
dplyr::select(Predictor, `Quitting intentions`) %>%
dplyr::rename("Correlation" = "Quitting intentions") %>%
dplyr::filter(Predictor != "Quitting intentions") %>%
dplyr::mutate(
"Rescaled Correlation" = round(abs(Correlation)/sum(abs(Correlation))*100,1)
) %>%
dplyr::arrange(desc(abs(Correlation))) Predictor Correlation Rescaled Correlation
1 Perceived organizational support -0.3557449 27.6
2 Management -0.2675792 20.7
3 Procedural justice -0.2484748 19.2
4 Managerial motivation -0.2100028 16.3
5 Autonomy -0.2092549 16.2And they’re also quite different from the rescaled coefficients from the standard multiple regression analysis—which suggests our efforts with RWA weren’t in vain. 😉
Show code
library(broom)
# creating a copy of mydata with properly named vars for using formula in the glm function
modeling_data <- setNames(mydata, make.names(names(mydata)))
# fitting the GLM
model_lm <- glm(
Quitting.intentions ~ Management + Job.satisfaction + Managerial.motivation + Procedural.justice + Perceived.organizational.support,
data = modeling_data ,
family = gaussian(link = "identity")
)
# making model summary tidy + computing rescaled coefficient estimates for comparison
broom::tidy(model_lm, conf.int = TRUE) %>%
filter(term != "(Intercept)") %>%
select(
Predictor = term,
Estimate = estimate,
SE = std.error,
`CI Lower` = conf.low,
`CI Upper` = conf.high,
`p-value` = p.value
) %>%
dplyr::arrange(desc(abs(Estimate))) %>%
dplyr::mutate(
`Rescaled Estimate` = round(abs(Estimate)/sum(abs(Estimate))*100,1)
) %>%
dplyr::select(Predictor, `Rescaled Estimate`, everything())# A tibble: 5 × 7
Predictor `Rescaled Estimate` Estimate SE `CI Lower` `CI Upper`
<chr> <dbl> <dbl> <dbl> <dbl> <dbl>
1 Perceived… 40.9 -0.331 0.0554 -0.440 -0.223
2 Job.satis… 40.5 -0.328 0.0450 -0.416 -0.240
3 Management 14.2 -0.115 0.0479 -0.209 -0.0213
4 Procedura… 2.3 -0.0188 0.0524 -0.121 0.0839
5 Manageria… 2 0.0165 0.0383 -0.0587 0.0916

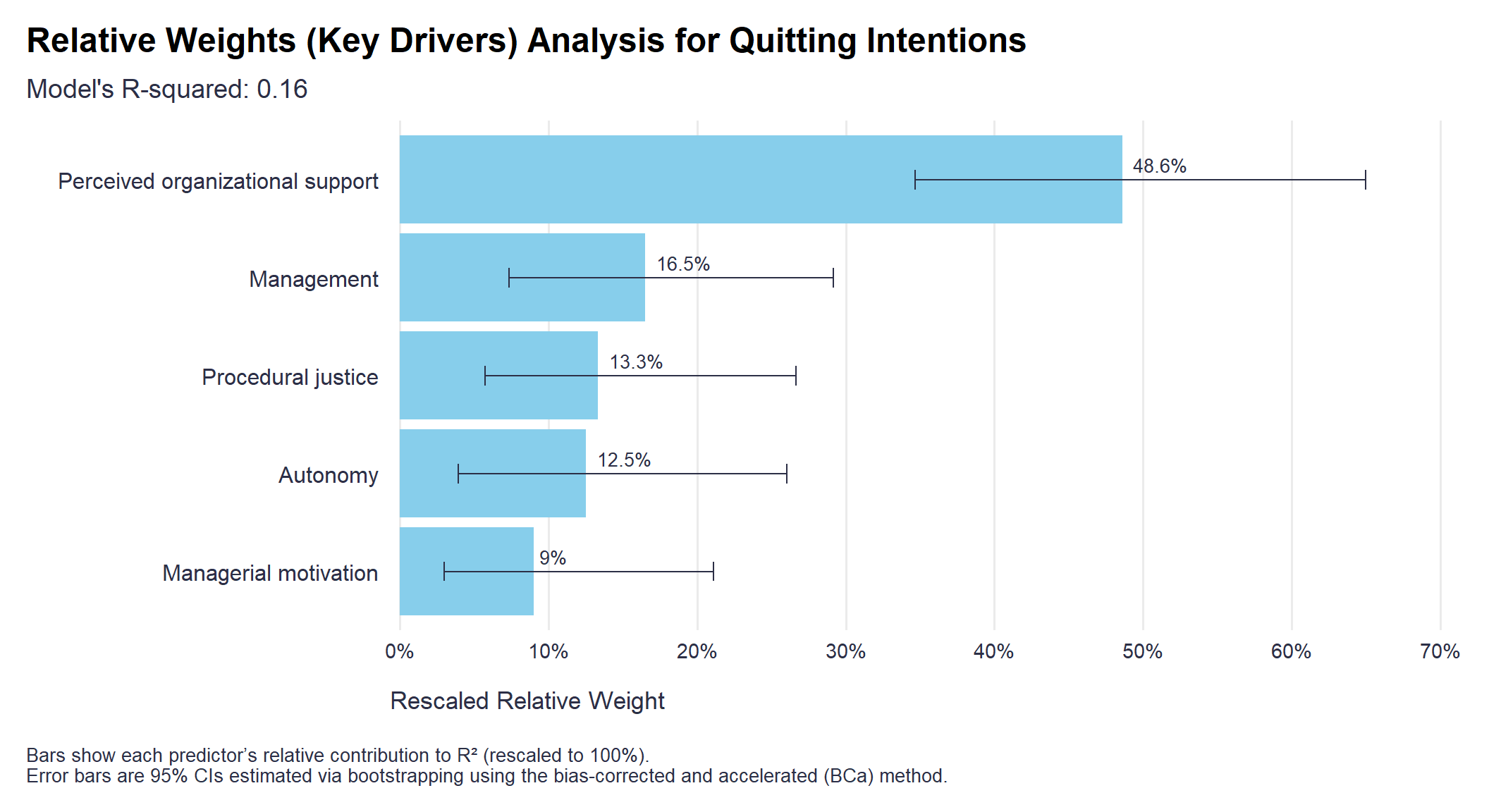

# ℹ 1 more variable: `p-value` <dbl>We may also want to quantify the uncertainty around our estimates of the relative weights. To do that, we’ll use a bootstrapping method, since the sampling distribution of relative weights isn’t well-defined. The resulting estimates, along with their 95% confidence intervals, are shown in the bar chart below.
Show code
library(boot)
# estimating CI using bootstrapping
# function to compute raw and rescaled relative weights with signs
compute_rwa <- function(data, indices) {
sample_data <- data[indices, ]
model <- rwa::rwa(
sample_data,
outcome = outcome,
predictors = predictors,
applysigns = TRUE,
plot = FALSE
)
return(model$result$Rescaled.RelWeight)
}
# setting seed for reproducibility
set.seed(2025)
# performing bootstrap
boot_results <- boot::boot(
data = mydata,
statistic = compute_rwa,
R = 10000
)
# initializing a matrix to store confidence intervals
boot_cis <- matrix(NA, nrow = length(predictors), ncol = 2)
rownames(boot_cis) <- predictors
colnames(boot_cis) <- c("CI_lower", "CI_upper")
# calculating confidence intervals for each predictor using BCa method
for (i in 1:length(predictors)) {
ci <- boot::boot.ci(boot_results, type = "bca", index = i, conf = 0.95)
boot_cis[i, ] <- ci$bca[4:5]
}
# calculating mean relative weights
# relative_weights <- colMeans(boot_results$t)
# creating a df with results
final_results <- data.frame(
Predictor = predictors,
RescaledWeight = results_df[, "Rescaled.Weight"],
CI_Lower = boot_cis[, "CI_lower"],
CI_Upper = boot_cis[, "CI_upper"]
)
# display the results
# print(final_results)
# visualizing the results
# ensuring predictors are treated as ordered factors
final_results <- final_results %>%
dplyr::mutate(Predictor = forcats::fct_reorder(Predictor, RescaledWeight, .desc = FALSE))
ggplot2::ggplot(final_results, aes(x = Predictor, y = RescaledWeight)) +
ggplot2::geom_bar(stat = "identity", fill = "skyblue") +
ggplot2::geom_errorbar(
aes(ymin = CI_Lower, ymax = CI_Upper),
width = 0.2,
color = '#2C2F46'
) +
ggplot2::geom_text(aes(
label = stringr::str_glue("{round(RescaledWeight, 1)}%")),
color = '#2C2F46',
size = 3.5,
hjust = -0.2,
vjust = -0.5
) +
ggplot2::scale_y_continuous(
breaks = seq(0,70,10),
labels = scales::number_format(suffix ="%"),
expand = expansion(mult = c(0.01, 0.1))
) +
ggplot2::labs(
title = "Relative Weights (Key Drivers) Analysis for Quitting Intentions",
subtitle = stringr::str_glue("Model's R-squared: {round(r_squared, 2)}"),
x = "",
y = "Rescaled Relative Weight",
caption = '\nBars show each predictor’s relative contribution to R² (rescaled to 100%).\nError bars are 95% CIs estimated via bootstrapping using the bias-corrected and accelerated (BCa) method.'
) +
ggplot2::coord_flip() +
ggplot2::theme_minimal(base_size = 14) +
ggplot2::theme(
plot.title = ggtext::element_markdown(face = "bold", size = 18, margin = margin(0, 0, 10, 0)),
plot.subtitle = element_text(color = '#2C2F46', face = "plain", size = 14, margin = margin(0, 0, 10, 0)),
plot.caption = element_text(color = '#2C2F46', face = "plain", size = 10, hjust = 0),
axis.title.x.bottom = element_text(margin = margin(t = 15), color = '#2C2F46', face = "plain", size = 13, hjust = 0),
axis.text.y = element_text(color = '#2C2F46', face = "plain", size = 12),
axis.text.x = element_text(color = '#2C2F46', face = "plain", size = 11),
panel.grid.major.y = element_blank(),
panel.grid.minor.y = element_blank(),
panel.grid.minor.x = element_blank(),
plot.margin = unit(c(5, 5, 5, 5), "mm"),
plot.title.position = "plot",
plot.caption.position = "plot",
plot.background = element_rect(fill='white', color = "white"),
)
